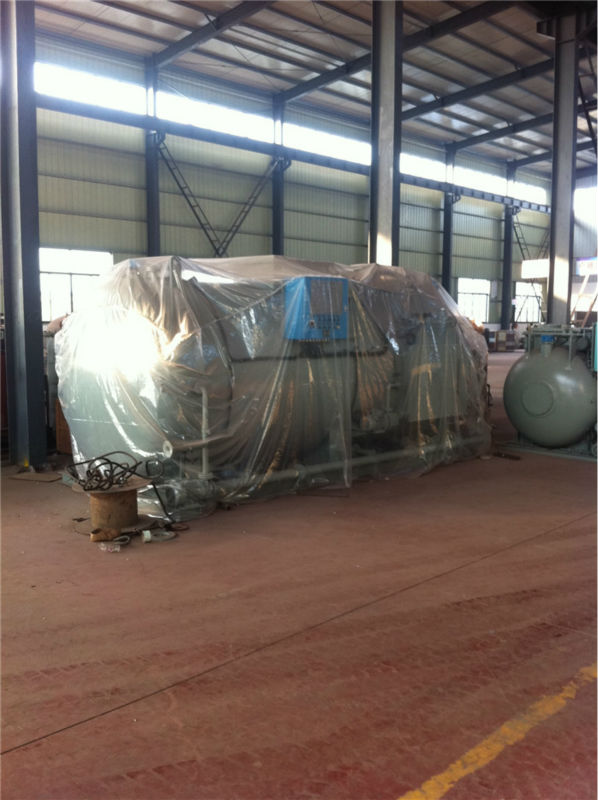

200 Persons with CCS and EC Sewage Treatment Units
Marine Sewage Treatment Plant can be used in terrestrial
sewage,besides in ship vessels and oil platform.The water quality
after treatment can reach the national reuse water quality
requirements.It is also applicable to treat the galley,shower
drainage which is calle“dgrey water”on condition that the“grey
water”is pretreated and there should select a bigger capacity model
to match with.This device has obtained one item of Authorized
Patent and one item of Practical new patent,meanwhile has been
obtained the Type Approval of CCS and IMO circular in April
2009,and it in February 2011 by Germanischer Lloyd(GL)type approval
certificate MED made,while providing ABS,DNV,BV,RS and other
classification societies certificate.
1,Adopting horizontal circular design,ellipse closures on both
ends,pressure resistance and compact structure.
2,The Sewage Treatment Plant is adopted auto-control,and compliance
with the requirement of 24-hours unattended cabin.
3,Adopting the“MBR”technology,devices allow to the narrow size,and
solve the conflict of small space of cabin,but big volume of
device.
4,The intermittent aeration in bio-membrane tank and hollow fiber
membrane tank,form the process of“aerobic–anoxic”,and resolve the
problem of“nitrogen and phosphorus removal”.
5,The Sewage Treatment Plant is adopting the principle
o“fair-lifting”to transfer the sludge from sediment tank and
membrane tank to aeration tank,meantimes the“pump stops and air
never stopped”,so as the scale on the membrane surface comes
down.Due to back flushing and clean the membrane“online”usd
technology patent.
6,”On-line”cleaning technology,making the dirt on membrane off
automatically,recover membrane flux.It can be solved the problem of
opening the cleaning or replacement of membrane difficultly caused
by the small space in cabin.
7,The effluent after further treatment can be reached at the
requirement o“fwater recovery”.
Some Other Sewage Treatment Plant Types
1 Marine Sewage Treatment Plant
2 Biochemical Sewage Treatment Plant
3 Marine Black and Gray Water Treatment and Water Recovery
4 SystemMarine Self-riming Grey Water Pump
5 Marine Sewage Comminting and Disinfecting Holding Tank
6 Marine Vacuum Collection System
Rated capacity(p):
15,20,25,30,40,50,60,80,100,120,150,200,250,300,400
| Sewage Treatment Plant | MSTP-15 | MSTP-30 | MSTP-50 | MSTP-60 | MSTP-100 | MSTP-200 | MSTP-250 | MSTP-400 |
|
| Treatedload | Average load(l/d) | 1190 | 2310 | 3780 | 4480 | 7700 | 14700 | 18200 | 30800 |
|
| Peak load(l/h) | 149 | 289 | 473 | 560 | 963 | 1838 | 2275 | 3850 |
|
| Organic load(kgBOD5/d) | 0.595 | 1.155 | 1.89 | 2.24 | 3.85 | 7.35 | 9.1 | 15.4 |
|
| Rated capacity(p) | 15 | 30 | 50 | 60 | 100 | 200 | 250 | 400 |
|
| Max capacity(p) | 17 | 33 | 54 | 64 | 110 | 210 | 260 | 440 |
|
| Electricity | AC380V,50HZ,3Φ/AC440V,60HZ,3Φ | |
|
| Power(kw) | 2.25 | 2.5 | 3 | 3.5 | 4 | 6 | 7 | 11 |
|
| External dimensions L*W*H | 1850* | 1980* | 2300* | 2650* | 2706* | 3630* | 3880* | 5980* |
| 1200* | 1500* | 1700* | 1700* | 2000* | 2200* | 2400* | 2400* |
| 1400 | 1650 | 1820 | 1830 | 2200 | 2350 | 2570 | 2600 |
| Weight | Dry weight(kg) | 1000 | 1200 | 1450 | 1600 | 2200 | 3000 | 3300 | 4200 |
|
| Wet wight(kg) | 2283 | 3500 | 5073 | 5270 | 8268 | 13267 | 16538 | 25417 |
