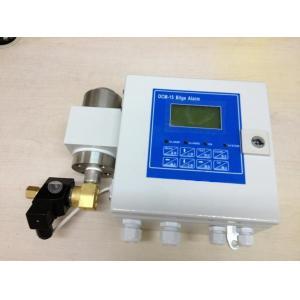

15PPM Bilge Alarm for oil water separator

Meet IMO MEPC 107(49) and CCS certificate

Technical Data

Measure range:0-30ppm

Alarm Point:1-15 ppm adjustable

Accuracy: Better than 5mg/l

Power Supply:220VAC/110VAC ± 10%

Display:LCD display

Size (over all):360 mm W x 240 mm H x 105 mm D

Standard:IMO.Res.MEPC.107(49)

Specific

The bilge water alarm device has been designed specifically for use in continuous monitoring of

oil-in-bilge water, 15 ppm alarm and control of discharge, detection, memory and enquiry of alarm status.It is applicable to detect boiler condensate water. And it applies to oil and chemical industries as well.

The bilge water alarm device use the technology of near infrared measurement, which can display

the detected result in real time. The unit is supplied with 2 worksadjusted alarms. The set point (15ppm factory set) could be adjusted at any moment through the panel. If an alarm set point is exceed, the alarms are visible at the front panel and the appropriate relays are switched, that

can be achieved the movement control of overrun closedown or the treatment of overrun recycle, andthe memory and enquiry of alarm record. Furthermore, a 4 - 20 mA (equal to 0 –15ppm) effective signal output is available for driving a recorder or external meter.
